VT-73 Hybrid Vacuum Tube Mic Preamp Kit

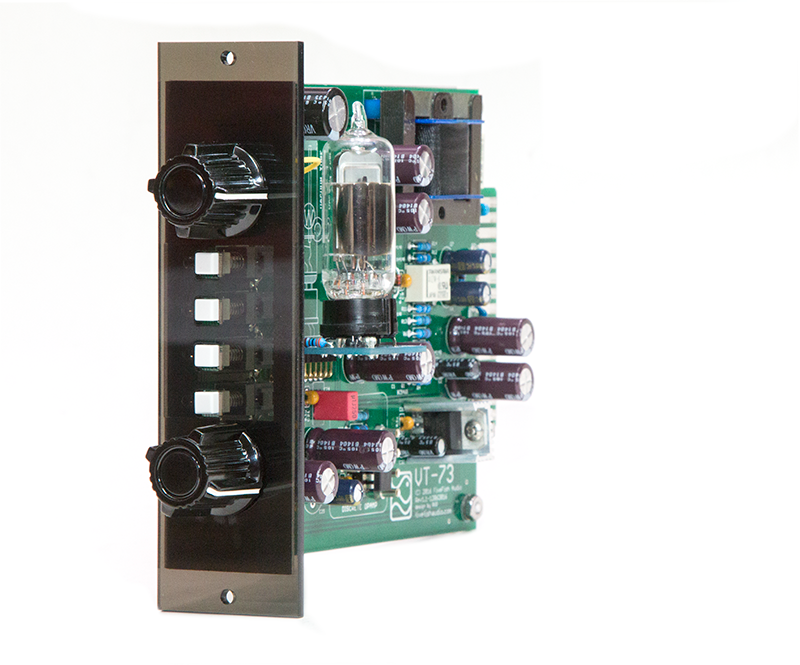

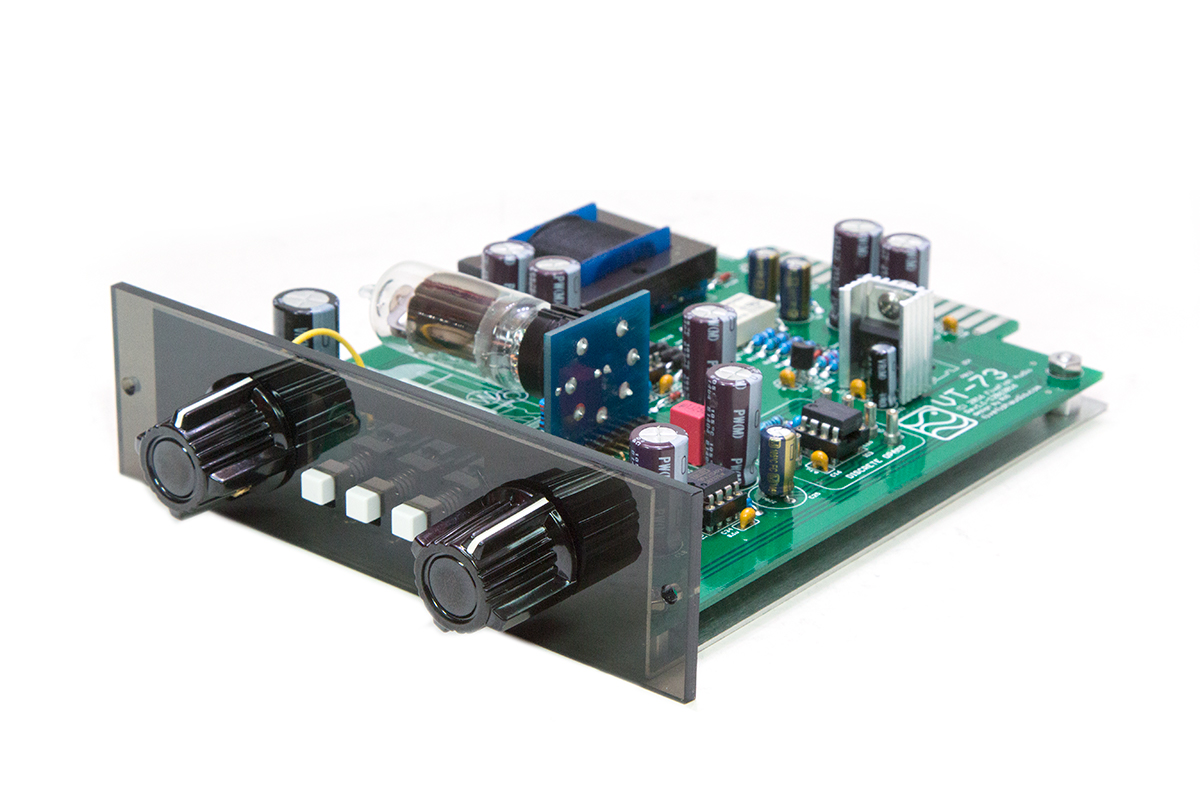

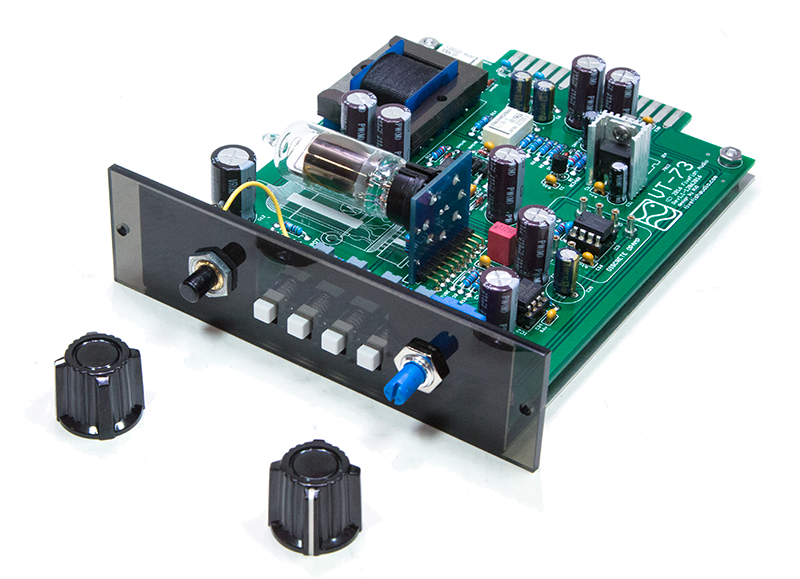

Profile View

Profile View

Profile View

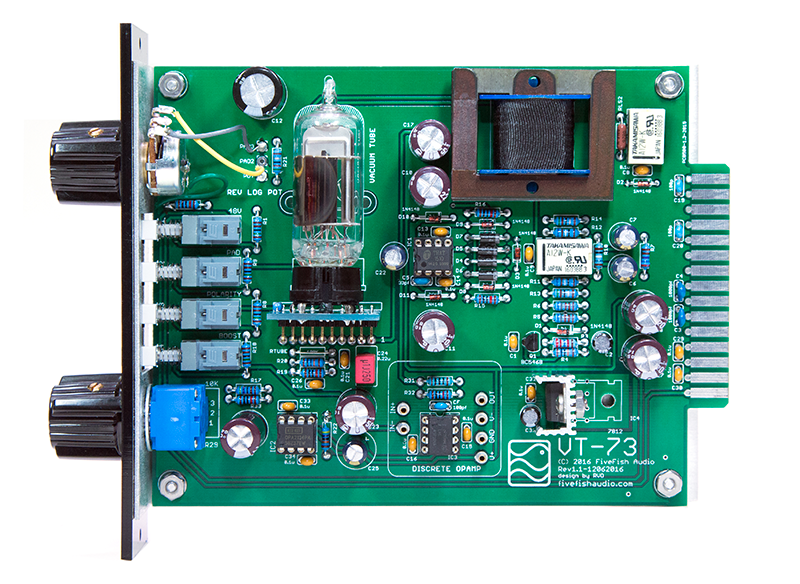

Top View

The VT-73 is a 500 Series Vacuum Tube/Solid State Hybrid Mic Preamp. A very versatile preamp that can give you a clean, pure sound, to a fully harmonics-saturated signal for that rich and thick sound when you need it -- and fully adjustable for anything in-between!

This is the mic preamp for you if you're curious and interested in what vacuum tube's non-linear distortion can do to your sound recordings! Treat your ears to the richness of 2nd and even harmonics.

An API Rack/Lunchbox or compatible rack is required to supply power and the necessary XLR input and output connections to the VT-3 Mic Preamp module.

  • 500 Series format, for use with API rack/lunchbox or compatible rack
  • Precision Laser cut tinted/transparent front panel - included! So you can show-off the "guts" of your DIY build
  • Aluminum sled carrier - Included!
  • Knobs - Included!
  • Actually... everything is included! Spacers, screws, nuts, and all parts to build a working VT-73 Mic Preamp
  • Hybrid Vacuum tube and solid-state design, with Discrete OpAmp option and Output Transformer
  • Soft-start, slow ramp-on +48V phantom power
  • Simple to use Gain control, up to +72dB
  • Trim control to adjust the signal hitting the vacuum tube stage
  • Gain boost switch, post vacuum tube stage
  • Robust 48Volt short circuit protection (from accidental phantom power shorts)
  • LED indicators for phantom power, -20dB pad, polarity reverse and Boost mode
  • Relay controlled Pad
  • Relay controlled Polarity Reverse
  • Electronically balanced input stage
  • Balanced output stage with Output Transformer
  • Input RFI protection
  • Input clamping protection
  • Output surge protection circuit
  • Output RFI protection
  • Gold-plated, machined, low-profile IC sockets
  • Use of high quality 1% Metal Film resistors, and high-quality ceramic and electrolytic capacitors
  • Easy to assemble, easy to troubleshoot design

The VT-73 Mic Preamp is a brand new product from FiveFish Audio. No reviews yet, but we look forward to hearing your comments and feedback! Click here to let us know your thoughts.

To read other product reviews, click here.

VT-73 Vacuum Tube Mic Preamp Kit

$190 Complete 500-Series DIY Kit
Includes Vacuum tube and Output Transformer
Buy Now
